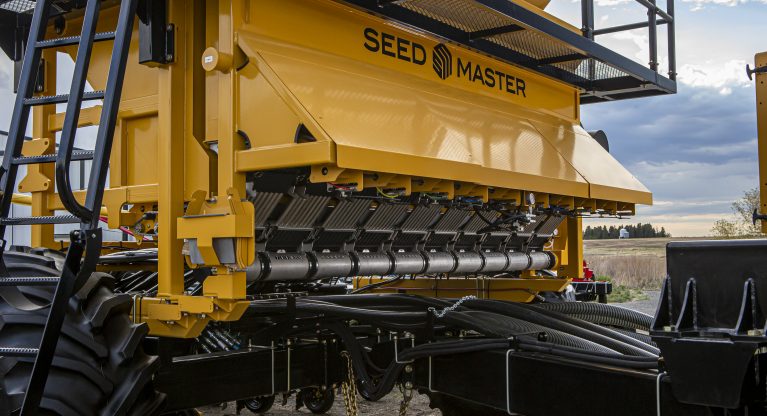

innovative precision

The UltraPro II On-Frame Tank System sets itself apart with its unique look, gentle seed handling and incredible accuracy. Third-party testing has proven that SeedMaster’s UltraPro II decreases input costs by delivering seed more uniformly than any other metering system on the market. The individual row metering of the UltraPro II metering gives farmers the opportunity to get the most out of their farm and increase profitability.

Brochure Download

STANDARD FEATURES

Accurate Metering
Individual row metering for as low as 3.2% CV2 across the width of the drill
High Capacity Venturi
Large venturi size allows for higher metering capacity, accommodating all seed sizes and seeding rates
Tank Configurations
Our two-tank option meters into one air stream, eliminating the need for a dual shoot seed boot
High-Capacity Individual Distribution Lines
Meters high product rates with uniformity across the drill
Roller Options
Two interchangeable rollers: (1) for canola/inoculant/small seeds and (2) general purpose for pulse, cereal and fertilizer
High Efficiency Fans
Gently move high volumes of any seed, inoculant, or fertilizer directly to the opener for gentle and efficient distribution
Variable Rate Ready
Variable rate application is available for multiple products
Overlap control with Auto Zone Command
Prevents the over-application of seed and fertilizer
Real-Time Product Weighing and Calibration
Load cells on each individual tank, along with Applied Product Calibration technology, ensure real-time product weighing and metering accuracy
ISO Ready

Options

Raven Viper 4+
Control and monitor multiple functions on one display

Bag Lift

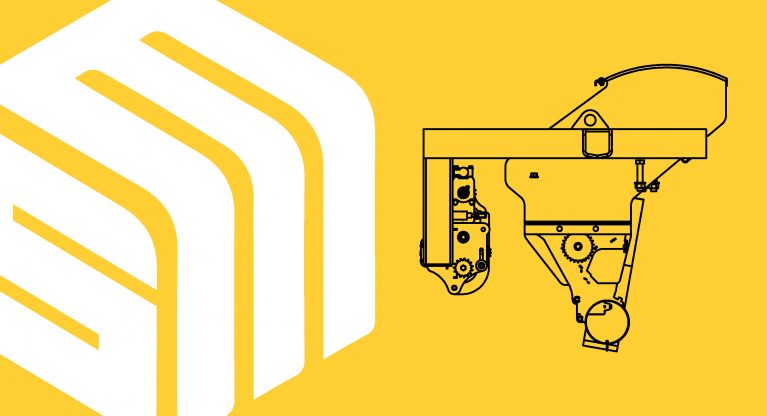

UPII 20

20 Bu | 705 L
Single-Shoot
Single Tank

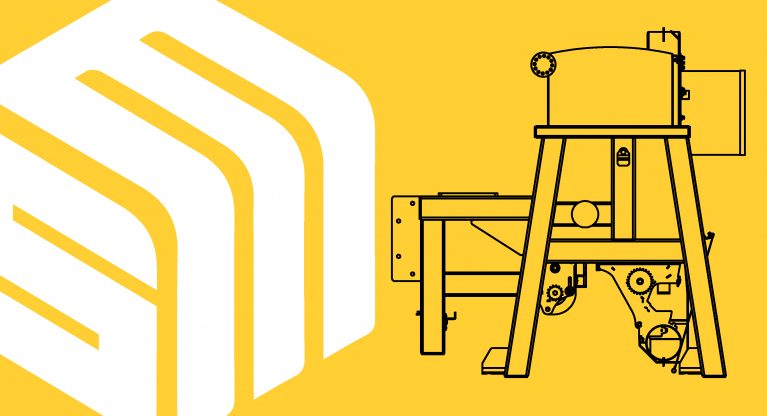

UPII 40

40 Bu | 1,410 L
Single-Shoot
Single Tank

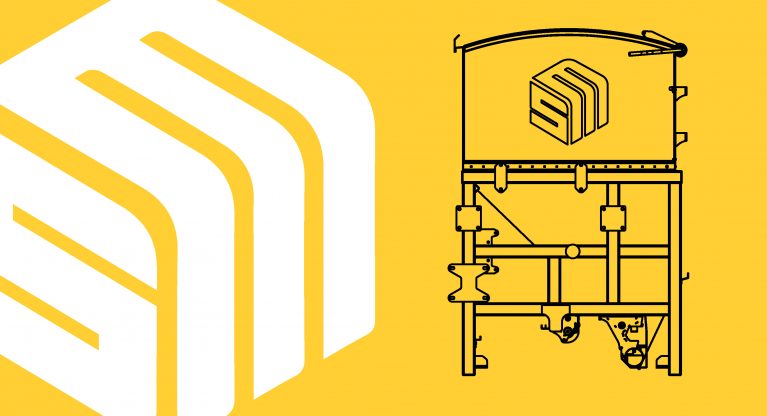

UPII 350

350 Bu | 12,334 L
Single-Shoot
Single Tank

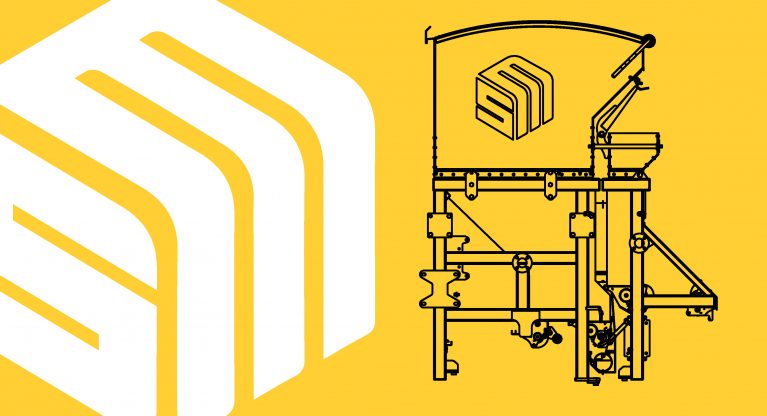

UPII 360

40/320 Bu | 1,410/11,277/ L
Single-Shoot
2-Tank

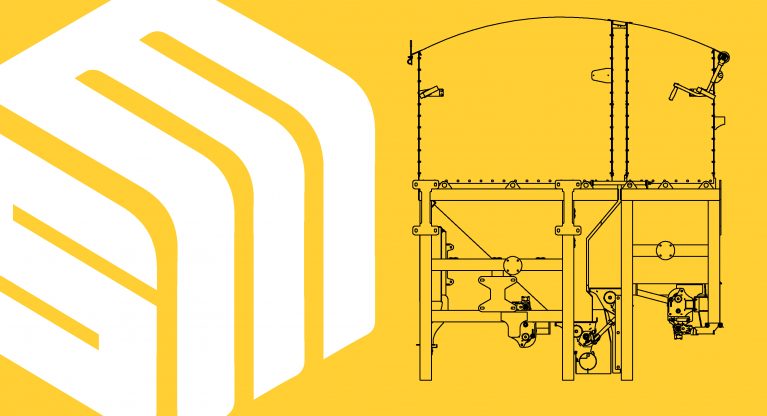

UPII 530

160/370 Bu | 5,991/12,686/ L
Single-Shoot
2-Tank

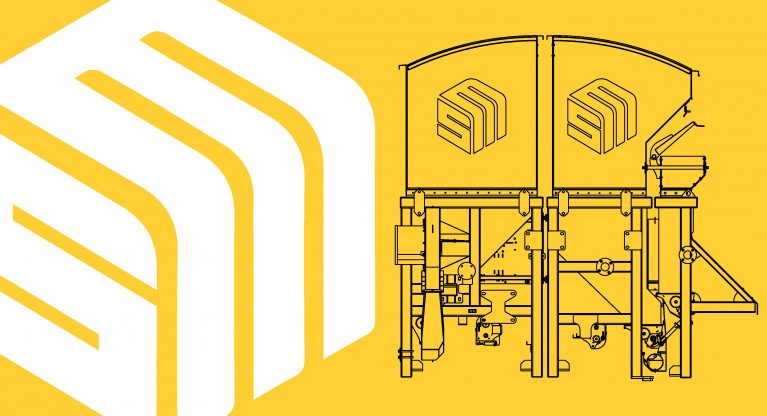

UPII 550

40/240/270 Bu | 1,410/8,457/9,515 L
Double-Shoot
Three-Tank

Calculate your savings

Calculate Now

UltraPro ll On-Frame Toolbar Options

Working Width		Row Spacing		# of Rows	Frame Style	Approx. Transport Height		Approx. Transport Width		# of Zones
FT	M	IN	CM			FT	M	FT	M
40′	12.19	10″/12″	25.4/30.48	48/40	Compact M	16’2″	4.93	20’4″	6.20	8
50′	15.24	10″/12″	25.4/30.48	60/50	Compact M	15’9″	4.80	20’4″	6.20	8/10
60′	18.29	10″/12″/15″	25.4/30.48/38.1	72/60/48	Compact M	18’2″	4.88	20’4″	6.20	8/10
70′	21.35	12″/15″	30.48/38.1	70/56	Compact M	18’2″	5.54	20’4″	6.20	8/10
80′	24.38	12″	30.48	80	Compact M	20’2″	6.15	22’5″	6.83	8/10
80′	24.38	12″	30.48	80	Wide M	18’2″	5.54	25’4″	7.72	8/10

TEST RESULTS ON METERING AND DISTRIBUTION FROM PAMI

SeedMaster Manufacturing engaged Prairie Agricultural Machinery Institute (PAMI) to test and validate the distribution uniformity of two 70 ft (21 m) air seeder configurations manufactured by SeedMaster; the Nova Cart and the UltraPro II. A total of eight treatments per air seeder configuration were completed, with three repetitions per treatment. Treatments included varying rates of wheat, canola, soybeans, and peas, with some treatments also including fertilizer. Germination and vigor tests were conducted on 12 of the 16 treatments.

Download the PAMI report:

PAMI Report
