Product delivery that speaks for itself.

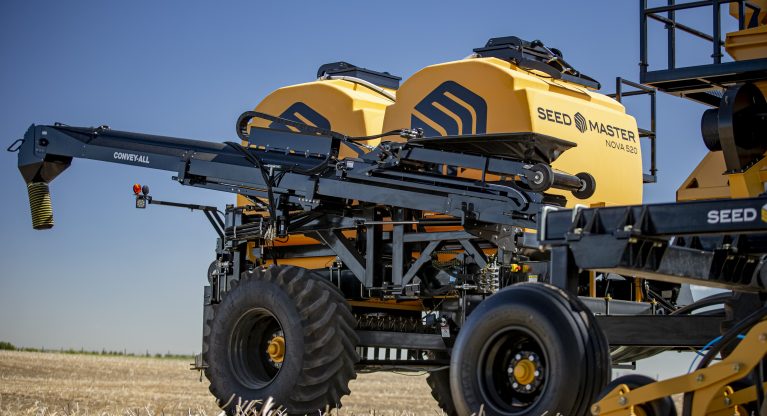

The Nova Series II has a gentle, nimble, user-friendly design that increases the precision, longevity and efficiency of our air cart system. Along with an extensive list of upgraded features and benefits, it works seamlessly with the SeedMaster toolbar, has 10 zones of metering, and offers a wide range of capacity options to stay in the field longer between fills.

Brochure Download

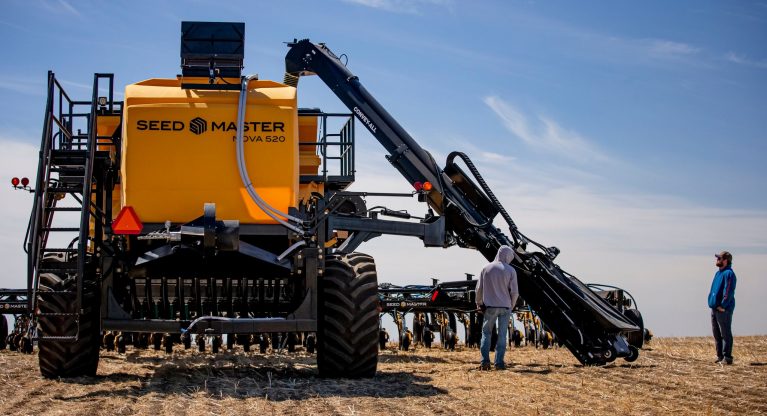

Nova Series II

NEW & UPGRADED FEATURES

  • Redesigned metering with improved bushings, housings, seals, and stainless-steel bearings
  • Redesigned zone command pivot arm that keeps idler gear engaged at all times
  • Improved air cylinders with a better piston seal and an additional wiper seal
  • Improved zone command air system with added tank drains, air driers, and air filters
  • Meter drive reinforcements with reduction drives to allow for high and low rate applications
  • High capacity S3 delivery fans with low oil flow requirements
  • Improved inspection and air stream plugs for easier isolated air stream selection
  • Increased axle strength and capacity with heavier 710 tires, rims, hub studs, and wheel clamp rings
  • ISO connectivity and compatibility
  • Thicker-walled poly product tanks
  • Internal tank support structure with incorporated ladder
  • Simplified and improved tank scales and readout
  • Simplified hydraulic lids with automatic pressure selector
  • Improved conveyor versatility and functionality
  • Larger, heavier walkway ladder steps for operator ease and safety
  • Rear hitch options for additional ISO product carts
  • New decal pack with increased labelling for an improved user experience and safety
  • Increased overall aesthetics, performance, and longevity

STANDARD FEATURES

  • Remote Hydraulic Lids
    Lids close hydraulically when fans are engaged from the tractor cab
  • Overlap Control
    Prevents over-application of seed and fertilizer
  • Single or Dual Shoot
    Allows for the use of seed or seed and fertilizer
  • Dual Air Streams
    Can manage up to 350 lbs. of product on a 48 to 100 foot drill at up to 5 mph
  • Split Tanks
    Handles up to 4 products at once; the ideal cart for varying fertilizer rates and commodities to suit your farm
  • Isolated Air Streams
    Low air speeds for canola and fragile seeds; high speeds for fertilizer
  • 10 Zones of Bulk Metering
    Designed to carry the correct amount of product to your tower
  • Real-Time Product Weighing & Calibration
    Load cells along with SmartCal technology ensures you have the right amount of product being applied from each tank
  • Variable Rate Ready
Complete Seeding System

Options

  • High-Capacity Conveyor with Slide-Out Hopper
  • Camso Tracks
  • Raven Viper 4+ Field Computer control and monitor – multiple functions on one display.
  • Liquid Fertilizer Tank

Nova Tank Specs

Feature520560630780820
Total bushel capacity (bu / l)520 / 18,324520 / 18,324630 / 22,201780 / 27,487820 / 28,896
Dry weight *approx. (lbs / kg)
15,500 / 7,03117,500 / 7,93819,400 / 8,80027,700 / 12,56529,500 / 13,381
Length with conveyor (ft / m)35′ / 10.736′ / 1135′ / 10.742′ / 12.843′ / 13.1
Width – dual tires (ft / m)
*Widest configuration noted.
Narrower options may be available. 		21’6″ / 6.621’6″ / 6.621’6″ / 6.621’6″ / 6.621’6″ / 6.6
Width – tracks (ft / m)21′ / 6.421′ / 6.421′ / 6.421′ / 6.421′ / 6.4
# of 260 bushel tanks / # of 9,163 litre tanks22233
# of 110 bushel tanks / # of 3,876 litre tanksN/AN/A1N/AN/A
# of 40 bushel rear-mount tank / # of 1,410 litre rear mount tank
*For tow-behind models only.		OPTIONAL1N/AOPTIONAL1
Real-time product weighing technology and in-cab readoutsSTANDARDSTANDARDSTANDARDSTANDARDSTANDARD
Auto Zone CommandSTANDARDSTANDARDSTANDARDSTANDARDSTANDARD
Dual cart wheels 710-70R38 on 1030 hubsOPTIONALOPTIONALOPTIONALSTANDARDSTANDARD
Single cart wheels 800-65R32STANDARDSTANDARDSTANDARDN/AN/A
Camso TrackOPTIONALOPTIONALOPTIONALOPTIONALOPTIONAL
Liquid fertilizer
(Change rear 260 bushel tank to 2,000 imp gal)		OPTIONALOPTIONALOPTIONALOPTIONAL
(Tow behind model only)		OPTIONAL
(Tow behind model only)
High-capacity, all hydraulic 16/28 conveyor with slide-out hopper OPTIONALOPTIONALOPTIONALOPTIONALOPTIONAL
