UNIFORM EMERGENCE AND PRECISE PLACEMENT

Ensuring the highest yield potential begins with a seeding system that guarantees healthy and uniform emergence. From the moment the first five active – hydraulic, ground-following opener was created in 1991, SeedMaster has been perfecting their technology with uncompromising goal of precisely delivering each seed to maximize germination. The opener is low maintenance and built to withstand a variety of terrain and soil types including rolling hills, clay, sand, and rocky land. Each opener works independently with on-row packing and maintenance-free pivot points.

Brochure Download

SMD Dual Knife Opener

  • The Original Precision Opener Design
    Revolutionized Direct Seeding
  • Ideal For Perfect Seed and Fertilizer Placement
    • Direct seeding applications
    • Wide range of soil types – exercise caution with heavily worked conventional tillage and heavy gumbo/clay land – Consider SeedMaster Single Knife Toolbar (SMS)
    • All cereals, oilseeds, and pulse crops
  • Uniform Depth and Superior Soil-To-Seed Contact
  • Encourages Fast, Uniform Emergence
  • Early Emergence Gives The Crop The Greatest Opportunity To Reach Its Maximum Yield Potential
  • Entire Field Progresses At The Same Growth Stage For Ease Of Spraying And Maturing For Harvest
  • Extended Wear Fertilizer Knife Cuts Open The Furrow And Places The Fertilizer Below And To The Side Of The Seed
  • Extended Wear Angled Seed Knife Places Seed On A ‘Shelf’ Above And To The Side Of The Fertilizer Trench
  • 4.5″ Tire-In-Tire Packer Wheel Provides A Firm Pack And Leaves A Furrow That Collects Rain And Brings Moisture To The Seed
  • TruLine Opener Configuration Uses Mirrored Openers To Create A Skew-Neutral Frame
  • 10″, 12″, 15″ Spacing Options, Varies With Working Widths

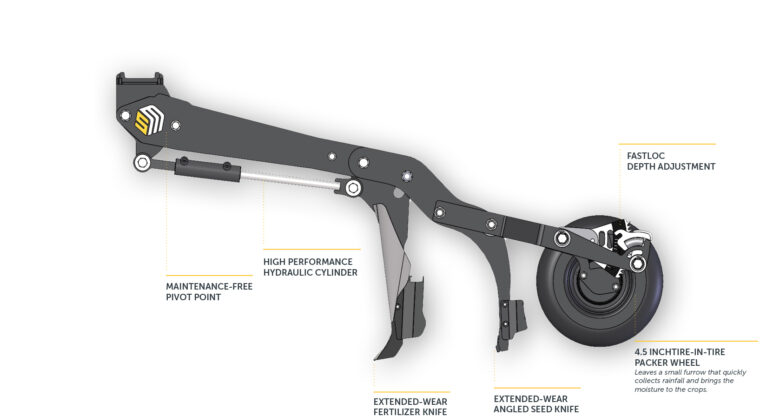

SMD Dual Knife Opener

SMD, The Original SeedMaster Dual Knife Design

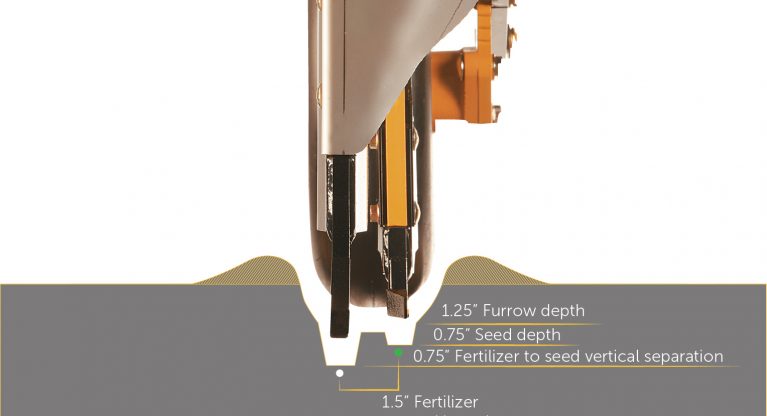

  • Creates a black strip with shallow, uniform seeding for ideal crop germination
  • Furrow is 1.25” deep
  • Seed depth is 0.75” (adjustable deeper or shallower in 1/8” increments)
  • Fertilizer-to-seed vertical separation is 0.75”
  • Fertilizer-to-seed horizonal separation is 1.5”
  • Crop has ready access to all nutrients through its entire growth cycle
  • Standard Equipment Stainless Steel Residue Deflectors

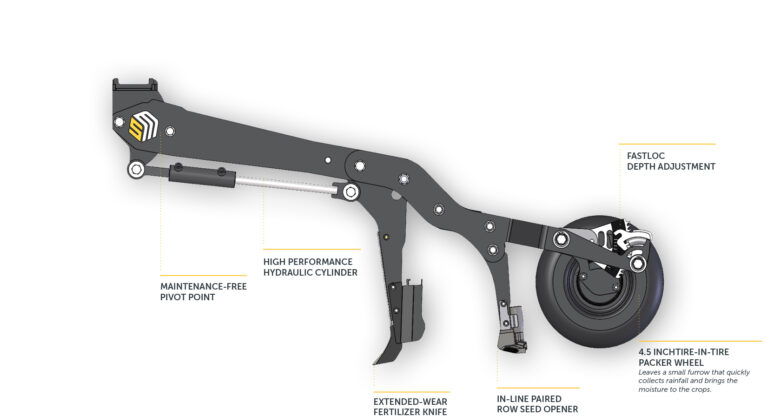

SMDi SeedMaster Dual Knife In-Line Configuration

  • Aligns The Seed And Fertilizer Openers Front To Back For Greater Ease Of Residue Flow

    Seed Knife Options:

    • Side Band Seed Knife, maintains the same furrow depth and seed/fertilizer vertical and horizonal separation as standard SMD opener
      • Ideal for crops and soil types where the standard SMD Dual Knife Opener is used
    • Paired Row, equips the seed knife with an inline 3” spread Paired Row opener
      • Fertilizer is applied by the leading fertilizer knife in the centre of the seed spread with 0.75” vertical separation
      • Suitable for soils and crops where paired row openers are common
      • For growers looking to achieve greater seed bed utilization
    • Can easily switch between Side Band and Paired Row Knives for different crops
